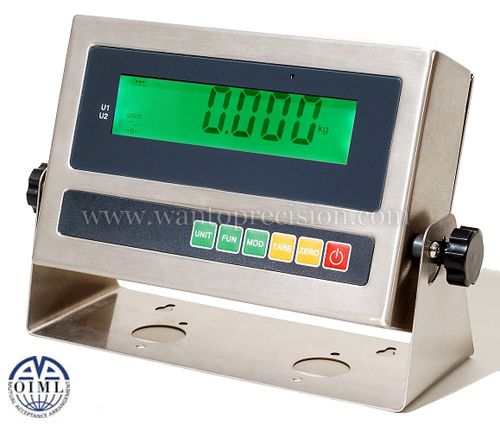

● Model: TP9901 |
|
● High Σ-Δ A/D conversion technology; |
|
● Low power consumption, backlight mode selectable; |
|
● Visible battery volume; Visible rate of Gross to Capacity; |
|
● Zero-tracking range, Zero range (manual/auto) setup; |
|
● Units: Kg, lb, two customized units; |
|
● Zero range 0mV~8 mV; |
|
● A/D conversion with readability 1/40000; |
|
● Display 6 bits LCD, 21 status indications; |
|
● Interface RS232C, 1200/2400/4800/9600/19200 bps; |
|
● Power supply AC 220~240V (110V optional) 50/60Hz;
built-in rechargeable battery 6V 1.3 AH; |
|
● Load cell excitation 5V/ Max 150 mA; |
|
● Load cell connection up to 4 at 350 ohm. |
