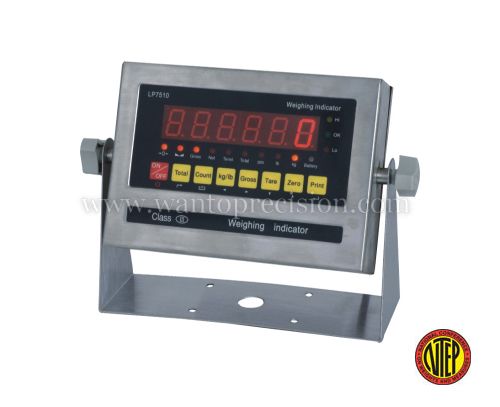

| Instroduction producto: LP7510 Weighing indicator housed in a durable stainless steel enclosure. It is equipped with a large easy to read 6 digits 0.8’’ LED or LCD display. Capable of powering up to 6-350ヘ load cells, this simple device can handle a multitude of functions. A full duplex RS-232 port can transmit data on demand or continuously to match the input requirement of a wide variety of devices including printers. Remote displays and computers. And the optional I/O card and can be connected with external control equipment to the perform the automatic control.
í High Quality / Low Cost
í NTEP Approved for 5000 Divisions
í Stainless steel or mild steel Enclosure
í Full Duplex RS-232 SerialPort
í Data hold function
í I/O Card to perform automatic control external machine (option)
í Display up to 30,000 graduations
í Drives up to six 350ヘ load cells
í Operates on AC Adapter or 9 Volt DC
í 4-20mA analog output
SPECIFICATIONS
Accuracy class 6000 e
Resolution display: 30, 000 ADC: 2,000,000
Zero stability error TK0 < 0.1レV//K
Span stability error TKspn < 【 6 ppm//K
Conversion time 50 ms
Sensitivity (internal) 0.12 レV /count
Input voltage -30~30mV DC
Excitation circuit 5 VDC, 4 wire connection, all strain gauge,
min. 50ヘ, e.g.: 6 load cell of 350ヘ
AC power AC100~250V
DC power DC6V/4Ah rechargeable batter,700mA。
Operation temperature -10 ∑Cto40 ∑C
Storage temperature -40 ∑Cto70 ∑C
Indicator Dimensions:7.87’’(L) X2.95’’(W) X7.17’’(H) |
