| Instroduction producto:

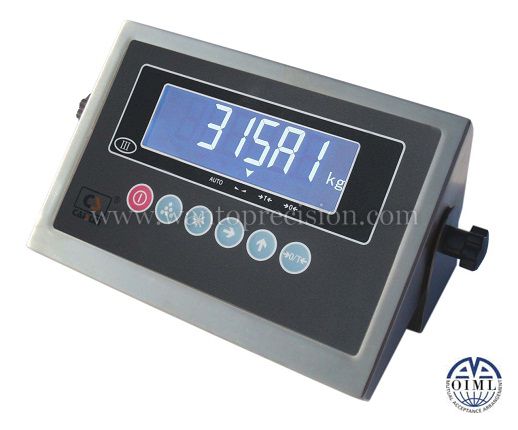

Model:XK315A1-11
stainless steel housing
Dimensions：265×222×161mm
Applications:electronic plaform scale and weighing scale,etc.
Package
Quantity：12 PCS per Carton
Dimension：48x59x60cm
Weight：About 25kg
Features
1. 10 V/m immunity to radiated electromagnetic fields
2. 6-digit 25.4mm LCD
3. Drive up to 4 x 350Ω or 8 x 700Ω load cell
4. 5 V load cell excitation voltage
5. Connection to 4-wire or 6-wire load cell
6. 1,000,000 internal ADC counts
7. Quick recalibration due to change of environment
8. Manual and automatic weight accumulation
9. Automatic zero tracking
10. RS-232C/RS-485 interface with continuous data output or command protocol
11. RS-232C serial printer interface
12. High resolution (×10) display
13. HI/OK/LO set point
14. Low battery warning
|
