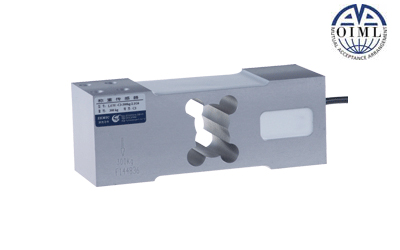

◆L6W load cells are available in the capacities 50kg to 635kg.
◆Alumium construction with parallel beam?
◆Silicon adhesive sealed, surface anodized and anti-corrosion.
◆Intergral structure and easy installation.
◆Suitable for electronic balance and
other electronic weighing devices.

Features
◆Capacity:50kg to 635kg .
◆High accuracy.
◆Recommended platform size:
50kg to 200kg 600x600mm.
250kg to 635kg 600x800mm
◆With OIML approval.

Capacity

(kg)

50/75/100/150/200/250/300/400/500/635

Accuracy

C3

Maximum number of verification intervals

n max

3000

Minimum load cell verification interval

v min

Emax/7000

Combined error

(%FS)

≤±0.020

Creep

(%FS/30min)

≤±0.0167

Temperature effect on sensitivity

(%FS/10℃)

≤±0.0175

Temperature effect on zero

(%FS/10℃)

≤±0.020

Output sensitivity

(mv/v)

2.0±0.2

Input resistance

(Ω)

406±6

Output resistance

(Ω)

350±3

Insulation resistance

(MΩ)

≥5000(50VDC)

Zero balance

(%FS)

2

Temperature,compensated

(℃)

-10～+40

Temperature,operating

(℃)

-35～+65

Excitation, Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Corner correction

0.02% load value/100mm
