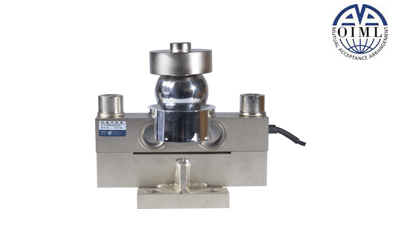

◆HM9B load cell are available in the capacities 10t to 50t.
◆Alloy steel construction, nickel plated , hermetically welded,
oil-proof,waterproof and anti-corrosive gas and medium making
it suitable for all kinds of environments.
◆Dual shear beam, Suitable for electronic truck scales,railway
scales and other electronic weighing devices.
◆It is safety and anti-explosion product that can be used in
atrocious weather and hazardous areas.

Features

◆Capacity:10t to 50t.
◆High accuracy.
◆Alloy steel construction.
◆Easy installation, reliable
performance.
◆With OIML approval.

Capacity

t

10/20/25/30/40SE/40/50

Accuracy

C1

C2

C3

A5M

B10M

Approvals

OIML R60 C3

Maximum number of
verification intervals

n max

1000

2000

3000

5000

10000

Minimum load cell
verification interval

v min

Emax/3000

Emax/5000

Emax/7500

Emax
/15000

Emax
/10000

Combined error

(%FS)

≤±0.050

≤±0.030

≤±0.020

≤±0.026

≤±0.050

Creep

(%FS/30min)

≤±0.038

≤±0.024

≤±0.016

≤±0.017

≤±0.040

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.028

≤±0.017

≤±0.011

≤±0.013

≤±0.040

Temperature effect
on zero

(%FS/10℃)

≤±0.047

≤±0.023

≤±0.015

≤±0.014

≤±0.020

Output sensitivity

(mv/v)

2.0±0.002

2.3±0.002

2.4±0.002

1.9±0.002

1.8±0.002

Input resistance

(Ω)

700 ±7

775 ±5

750 ±7

Output resistance

(Ω)

700 ±7

Insulation resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

1.5

Temperature, compensated

(℃)

-10～+40

Temperature,allowed

(℃)

-35～+65

Excitation, Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300
